Panel Bender

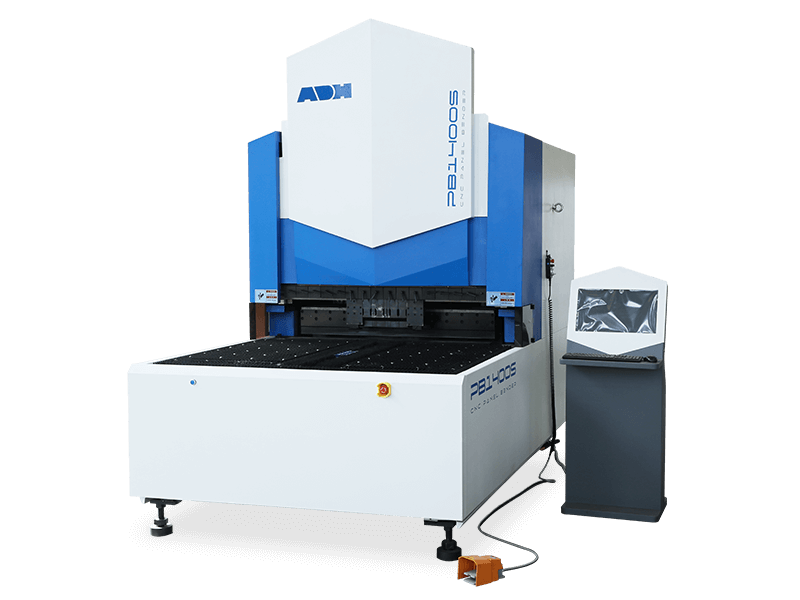

Suction Cup Type Panel Bender

Our machinery is equipped with a suction cup design that enables the fabrication of sheet metal with a maximum bending size of 2000mm x 2000mm. Its remarkable bending speed of only 0.2 seconds per bend significantly enhances productivity and helps reduce labor expenses.
Model: PB-S
Controller: Independent R&D
Capabilities: 3mm*2500mm
LEARN MOREGet Quote
Sucked Type Panel Bender

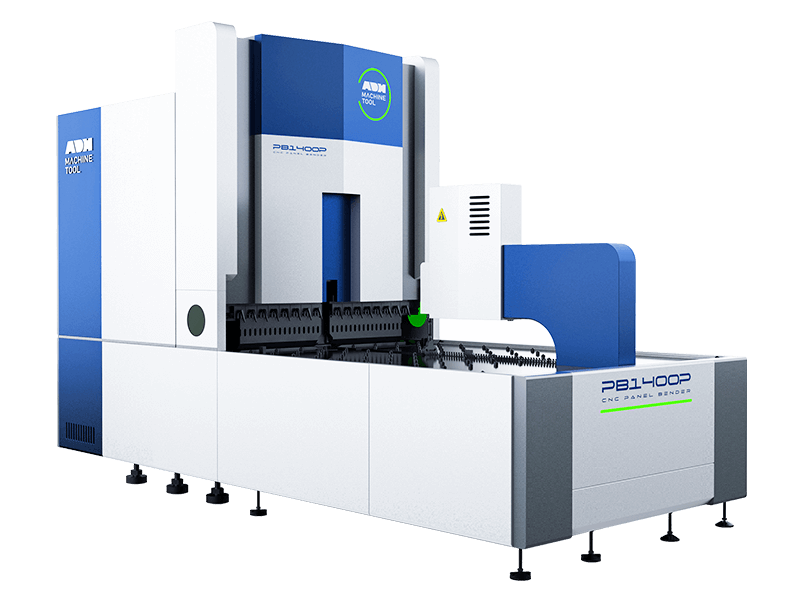

Press Arm Type Panel Bender

Our equipment is equipped with a pressure arm design that enables the fabrication of sheet metal up to a maximum bending size of 2500mm x 1250mm. With a remarkable bending speed of only 0.2 seconds per bend, this machine delivers precise and rapid bending, ensuring high accuracy in the final product.
Model: PB-P
Controller: Independent R&D
Capabilities: 3mm*2500mm
LEARN MOREGet Quote
Press Type Panel Bender

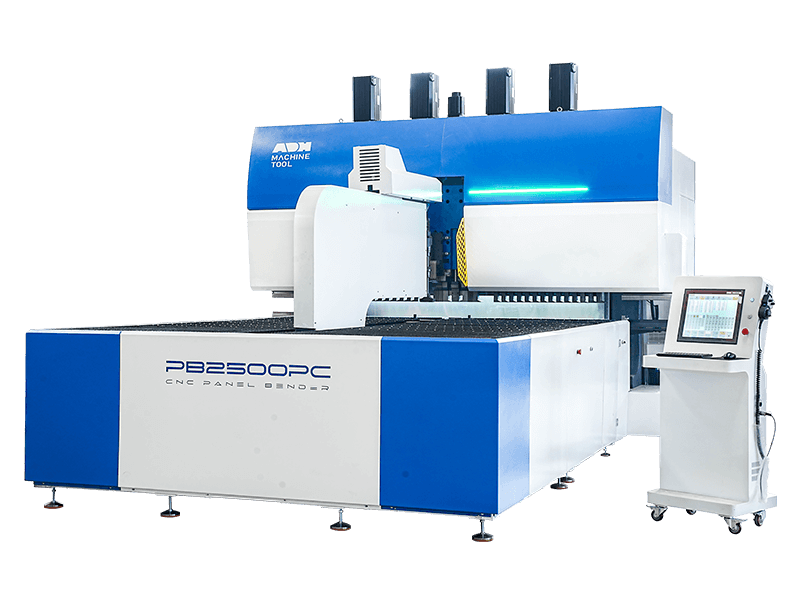

Auto-Tool Type Panel Bender

Experience unmatched precision, efficiency, and automation with our state-of-the-art solution designed to fit seamlessly into the era of Industry 4.0. From versatile material handling to intelligent system integration, our product redefines what’s possible in modern manufacturing.
Model: PB-A
Controller: Independent R&D
Capabilities: 3.5mm*2610mm
LEARN MOREGet Quote
Auto-Tool Type Panel Bender

COOPERATE

Why Choose Us?

Outlined below are some key reasons to choose us.

Competitive Price

Thanks to our batch manufacturing process, we can offer the best quality machines at a lower price.

Technical Support

When a breakdown occurs, our technicians are available for both online and onsite assistance and repair.

Short Lead Time

We offer delivery within 20 days for standard machines and 45 days for customized machines.

Quality Control

Before shipment, all machines undergo inspection by our quality control department.

Quality Guarantee

We provide a 15-year guarantee for the machine frame and a 1-2 year guarantee for parts and accessories for every product.

Expert Solutions

We offer professional and expert suggestions for the type of machine that will meet your requirements.

Comparison Between ADH and Competitors

ADH
Competitors
Control System
- The whole system is designed according to the idea of platform, which has good stability and scalability.
- Cutting machine tools with self-driven robotic arms and multi-axis linkage have good scalability and will be easily extended to other fields in the future.
Automatic Loading and Unloading
- The self-driven robotic arms can be directly attached, and it is effectively integrated with the bending center, with high efficiency and strong flexibility. It is also convenient to replace the workpiece;
- The action of the self-driven robotic arm is automatically generated according to the bending action.
- The customer does not need to maintain the robotic arm program, which is simple and convenient.
Concurrent Linkage
- The underlying driver is developed with hardware description language, which can realize simultaneous linkage interpolation of multiple axes, arbitrarily programme actions, and the timing is not limited;
- Realizing real multi-axis concurrent linkage control, the coordinated movement between the axes has no time difference and can complete various complex action combinations with high efficiency.
Component and Configuration
- Machine Model of 2000P:
- The maximum power of the motor is 22KW. 8020 heavy-duty grinding grade screw rod and heavy-duty high-precision P-class 55 linear guide are used.
- The standard version of the helical gear reducer has a ratio of 5. The reducer specification is 180, and the precision is higher!
- The special bearing for the Japanese original NACHI high load roller screw injection molding machine is used, with the bearing ball diameter up to 16mm.
- Each shaft has 12 bearings, and the bearing value of each shaft is up to more than ten thousand yuan.
- High-grade casting machine body!
Advanced Control Instruction
- Customers are able to access to advanced control instructions, so that users can programme complex actions as they want and complete more complex workpiece shapes.
Three Axis Automatic Positioning + Automatic Detection
- Three independent axes can be used for positioning, and different reference positioning edges can be flexibly selected. At the same time, it has reliability detection functions such as anti-misplacement detection and anti-misplacement direction detection.
Double C-axis Following + Oblique Borrowing Function
- The feeding rotation axis has independent upper and lower rotation axes, which can be synchronous or asynchronous and can flexibly realize more complex workpiece processing.
Acceleration and Deceleration Control
- Each action realizes acceleration and deceleration control, which makes the machine run very smoothly with low vibration and noise.
- In the concurrent situation, it not only has high work efficiency, but also reduces the impact on mechanical parts, plays a great role in protecting equipment, and greatly extends the life of mechanical parts.
Bias Load Detection System
- The system can timely detect and stop the program operation in case of unilateral bending of the workpiece or foreign matters under the tools, which plays a good role in protecting the equipment, reducing equipment failures and extending the service life.
Plate Thickness Detection System
- When the actual thickness of the sheet is inconsistent with the program thickness during the workpiece bending process, it can detect and stop the program operation, which plays a good role in protecting the equipment, reducing equipment failures, and extending the service life.
- At the same time, it can effectively prevent the waste of customer materials.
System Control Accuracy
- The control accuracy of the system can reach 0.0001mm.
- The granularity of the interpolation operation can be very small without reducing the movement speed.
- Users can bend the accurate angle they want.
Power Hinge Knife
- The unique patented power hinge knife control, non-contact sliding of the material, effectively protecting the surface of the plate from damage, and ensuring that the hinge knife does not shovel the plate laterally to ensure bending accuracy.
Human-Computer Interaction Software
- Specially designed for flexible bending center
- Closer to the use habits of workers, and workers with bending experience can learn in 2 hours
- It has the function of self - inspection before bending and can display whether the workpiece shape is correct and clean from 4 angles with pictures and texts.
- With numerous crowning means, it is easy to realize high-precision bending
- After 3 years of market testing, it can easily handle various complex bends
Handwheel
- It is equipped with a handwheel, and the precision of the handwheel can reach 0.001 mm.
- For some complex parts, you can use the handwheel to debug the bending at first.
Handwheel Anti-Collision System
- The system can detect the system coordinates in real-time, and will immediately stop when the handwheel-driven axis is about to collide.
Deep Anti-Collision of Software
- The anti-collision is realized from the underlying of the system, with a nanosecond response time, and users can operate with confidence.
Industry 4.0+ Cloud Operation and Maintenance Management System
- Designed according to Industry 4.0 architecture, it has been built in the past five years and can be upgraded smoothly according to customer needs.
- After the research and development of cloud operation and maintenance management, the cloud operation and maintenance management system can open up all links from the equipment end to the operation end.
- Relying on the ADH cloud intelligent management system and the self-developed high-end equipment, it is easy to realize intelligent chemical plants for customers and move towards the real industry 4.0 era.
R&D Team
- We have our R&D team, and the core members are all senior R&D experts from ZTE.
- The R&D content is completely controllable, providing lifelong maintenance and upgrading.
- Our company is a national high-tech enterprise.
Patents
- Since 2018, it has applied for many core patents, more than 100 have been applied, more than 40 have been authorized, and 3 software works have been published.
Authoritative Inspection
- ADH took the lead to pass the strict inspection conducted by the National Machine Tool Quality Supervision and Inspection Center. The inspection report number is 2020QW044.
Customer
- Our products have a large number of stable customers.
- The first generation machine was launched in 2018 and has been proven in the market for nearly three years.
- Covering more than ten industries, customers have purchased thousands of sets.
Control System
- Most of the competitors' systems are temporarily assembled or improved based on the turret punch press, which have poor stability and scalability.
Automatic Loading and Unloading
- The robotic arm cannot be directly driven, and can only be docked with the robotic arm system.
- The customer needs to maintain two systems, and the replacement of the workpiece requires repeated debugging between the two systems, which is very inconvenient in the bending process.
Concurrent Linkage
- Most of them are bus control mode, not real concurrent linkage; The more axes, the greater the time difference, and the worse the linkage.
- Only relatively simple actions can be completed, and the overall efficiency is not high.
Component and Configuration
- The maximum screw shall not exceed 60, and the maximum linear guide shall be 45. The reducer shall not exceed 160.
Advanced Control Instruction
- Without advanced control instructions, complex action combinations cannot be completed.
Three Axis Automatic Positioning + Automatic Detection
- Generally, dual axes positioning has no anti-misplacement detection function, which greatly reduces flexibility and reliability.
Double C-axis Following + Oblique Borrowing Function
- Generally, there is only a single rotating axis, which cannot complete more complex workpieces.
Acceleration and Deceleration Control
-There is no acceleration and deceleration control or accurate control of each action is impossible.
- The action is inflexible, which has a large impact on parts, strong vibration and loud noise, and the service life of the equipment is relatively short.
Bias Load Detection System
- None. It is difficult to implement real-time bias load detection in a bus control system.
Plate Thickness Detection System
- None. It is difficult to implement real-time plate thickness detection in the bus control system.
System Control Accuracy
- The precision is low and can only reach 0.01mm, and the desired angle cannot be accurately bent.
- It is difficult to interpolate any axis, and the interpolation consistency is poor.
Power Hinge Knife
- Without this function, it is difficult to expand.
Human-Computer Interaction Software
- Imitate ADH, the interface function is simple, and it is not easy to use
- Workers have difficulties in learning
- Single crowning means, which can not achieve a good bending effect for some workpieces
- Just launched without market inspection, and the software is not mature enough
Handwheel
- No such function or fine adjustment.
Handwheel Anti-Collision System
- None
Deep Anti-Collision of Software
- Slow response time, just simple anti-collision
Industry 4.0+ Cloud Operation and Maintenance Management System
- The system is temporarily assembled for convenience.
- It is difficult to achieve new demands, and upgrade and drive other multi-axis systems at the same time.
R&D Team
- There is no core R&D team, and R&D is carried out through outsourcing companies.
- R&D and production are disjointed, with uneven levels, and subsequent upgrading, after-sales and maintenance are troublesome.
Patents
- Without their core technology, they counterfeit and infringe many of our patents, and face the risk of being sued.
Authoritative Inspection
- None
Customer
- There is no mass production, and it is still in the market validation stage.
- The R&D support is weak and disconnected from the manufacturer.
- After-sales is a big problem, and mass production faces many difficulties.

Our Processing Equipment

Only with advanced processing equipment can high-quality machine tools be produced.
Processing Equipment Gallery

FAQs

Got Questions? We've Got Answers
What is a panel bender?

A panel bender is an advanced sheet metal processing equipment used for the automated bending of various metal sheets. It integrates multiple functions to perform complex bending operations, enhancing production efficiency and precision.

What are the differences between a panel bender and a traditional press brake?

Compared to traditional press brakes, panel benders have the following main advantages:

  • Higher degree of automation, enabling unmanned operation
  • Higher processing precision, ensuring product consistency
  • Higher production efficiency, especially in mass production
  • Capability to perform more complex bending processes, such as polygonal bending

Which industries are panel benders suitable for?

Electrical cabinet manufacturing, Home appliance production, automotive parts processing, Aerospace industry, architectural decoration industry, and medical equipment manufacturing.

What are the main features of ADH's panel benders?
  • High precision: Utilizes advanced control systems to ensure bending accuracy
  • High efficiency: High degree of automation significantly boosts production efficiency
  • Flexibility: Capable of handling sheets of various materials and thicknesses
  • Intelligence: Equipped with intelligent programming systems, making operation and debugging easier

How to choose a panel bender that meets your needs?
  • Type and thickness range of the processing materials
  • Required bending length and precision
  • Production volume and efficiency requirements
  • Factory space and budget constraints

It is recommended to contact ADH's sales team, who can provide professional selection advice based on your specific needs.

How difficult is it to operate a panel bender? Is professional training required?

ADH's panel benders are designed with a focus on human-machine interaction, making them relatively easy to operate. However, to fully utilize the equipment's capabilities, it is recommended that operators undergo professional training. ADH provides comprehensive operation training services to ensure customers can proficiently use the equipment.

What should be noted for the maintenance and upkeep of a panel bender?
  • Regular cleaning and lubrication
  • Inspection and replacement of wear parts
  • Calibration of the control system
  • Following the maintenance manual provided by the manufacturer

ADH offers comprehensive after-sales service and maintenance guidance to ensure the long-term stable operation of the equipment.

What are the advantages of ADH's panel bender?
  • Advanced Technology: They utilize internationally leading technology to ensure high performance and high reliability of the equipment.
  • After-Sales Service: ADH provides comprehensive after-sales service and technical support to ensure the long-term stable operation of the equipment.
  • User Reputation: The machines have received high praise and trust from numerous users, making ADH a reliable brand in the market.

What types of panel benders does ADH provide?

1. Suction Cup Panel Bender (Model: PB-S)

  • Design Features: Utilizes a suction cup design, capable of handling metal sheets with a maximum size of 2000mm x 2000mm.
  • Bending Speed: Each bend takes only 0.2 seconds, significantly improving production efficiency and reducing labor costs.
  • Control System: Independently developed control system.
  • Processing Capacity: Can handle metal sheets with a thickness of 3mm and a length of 2500mm.

2. Press Arm Panel Bender (Model: PB-P)

  • Design Features: Utilizes a press arm design, capable of handling metal sheets with a maximum size of 2500mm x 1250mm.
  • Bending Speed: Each bend takes only 0.2 seconds, ensuring high precision and fast bending.
  • Control System: Independently developed control system.
  • Processing Capacity: Can handle metal sheets with a thickness of 3mm and a length of 2500mm.

What is the approximate payback period for the panel benders?

The payback period for the panel benders depends on several factors, such as usage frequency, the degree of production efficiency improvement, and labor cost savings. Generally, for medium-sized manufacturing enterprises, the payback period ranges from 1 to 3 years. ADH Corporation can provide a more precise payback analysis based on your specific situation.

What after-sales services and technical support does ADH Corporation offer?

ADH Corporation provides comprehensive after-sales services and technical support for panel bender customers, including:

  • Installation and commissioning services
  • Operation training
  • Regular maintenance inspections
  • 24/7 technical support hotline
  • Spare parts supply
  • Software upgrade services
