I. Introduction of Laser Cutting Machine Specifications

In the rapidly evolving field of metal processing, laser cutting machines stand out for their precision, versatility, and efficiency. However, the breadth of available models, each with distinct specifications, can present a challenge even to seasoned professionals.

Understanding the specifications of laser cutting machines is crucial for making informed decisions that align with specific production goals, material types, and desired outcomes. For deeper technical insights, you can refer to Understanding Laser Cutting Machine Wattage: A Comprehensive Guide, which explains how wattage directly influences performance and material compatibility.

Knowing the right parameters can significantly enhance productivity, optimize resource utilization, and ensure the finished product meets stringent quality standards. To learn how to match your production scale with the right table dimensions, see the Choose the Laser Cutting Machine Size: Expert Guide.

Laser cutting machines differ not just in their core technology but also in myriad other aspects such as power output, cutting speed, and compatibility with various materials.

Understanding these specifications helps in selecting the right machine, thus avoiding costly mismatches and ensuring seamless operations. It also aids in comprehending the machine's limits and capabilities, leading to better maintenance and longer lifespan.

II. Types of Laser Cutting Machines

Laser cutting machines leverage highly focused laser beams to precisely cut or engrave materials. The primary types of laser cutting machines used in industrial applications are CO2, fiber, and Nd:YAG lasers, each with distinct characteristics, applications, and specifications. Understanding these variations is essential for selecting the right equipment to meet specific manufacturing needs.

CO2 Laser Cutting Machines

CO2 laser cutting machines use a gas mixture primarily composed of carbon dioxide as the lasing medium. These machines are favored for their ability to cut a wide range of materials, including metals, plastics, wood, and textiles.

Common Applications

CO2 lasers are commonly used in industries such as automotive manufacturing, aerospace, signage, and apparel. Their versatility makes them suitable for cutting, engraving, and marking both metals and non-metals with high precision.

For instance, they are often employed for cutting stainless steel and aluminum, as well as intricate engraving patterns on organic materials.

Key Specifications

• Power Output: Typically ranges from 20W to several kW, depending on the specific application.
• Cutting Speed: Capable of high-speed cutting, especially effective with thinner materials.
• Beam Quality (M²): CO2 lasers generally offer good beam quality, which determines the fineness of the cut.
• Cooling Method: Often requires water cooling systems to maintain operational temperatures.
• Wavelength: Operates at a wavelength of 10.6 micrometers, ideally suited for non-metallic materials and some metals.

Fiber Laser Cutting Machines

Fiber lasers utilize a solid-state lasing medium, where the laser beam is generated and delivered through an optical fiber. These machines are known for their efficiency, compact size, and effectiveness in cutting reflective materials.

For manufacturers seeking optimized performance and speed, reviewing the Guide to Raycus Laser Cutting Machines provides valuable benchmarks for selecting the right fiber source. You can also gain deeper insights from Strategic Insights into Fiber Laser Cutting, which explores the strengths and trade-offs of fiber laser systems in industrial production.

Common Applications

Fiber lasers are predominantly used in industries requiring cutting and engraving of metals. Their high precision and power make them ideal for applications in electronics, medical device manufacturing, and fine metalwork, including cutting copper, brass, and silver, which are typically challenging for CO2 lasers.

Key Specifications

• Power Output: Ranges from 500W to over 10kW, suitable for various thicknesses of metal.
• Cutting Speed: High cutting speed, especially for thin and medium-thickness materials.
• Beam Quality (M²): Exceptional beam quality, resulting in fine cuts and high detail accuracy.
• Cooling Method: Often air-cooled, reducing maintenance complexity.
• Wavelength: Operates at a wavelength of around 1.06 micrometers, making it highly efficient for cutting metals.

Nd:YAG Laser Cutting Machines

Nd:YAG (neodymium-doped yttrium aluminum garnet) lasers are a type of solid-state laser. These machines are renowned for their high peak power and ability to cut through thick materials.

Common Applications

Nd:YAG lasers find major applications in industries requiring high precision and power, such as automotive, defense, and aerospace. They are often used for welding, deep engraving, and cutting thick metals.

Key Specifications

• Power Output: Typically ranges from a few watts to several kilowatts, depending on the application needs.
• Cutting Speed: Generally slower than fiber lasers but very effective for thicker materials.
• Beam Quality (M²): Good beam quality, though not as high as fiber lasers.
• Cooling Method: Usually requires complex water-cooling systems.
• Wavelength: Operates at a wavelength of 1.064 micrometers, effective across various metallic materials.

III. Key Specifications of Laser Cutting Machines

Selecting the right laser cutting machine hinges on a thorough understanding of key specifications. These specifications not only impact the machine's performance but also determine its suitability for specific applications. Below are the critical specifications to consider when evaluating laser cutting machines.

1. Power Output

The power output of a laser cutting machine, measured in watts (W), is one of the most fundamental specifications. It dictates the machine's ability to cut through materials of varying thicknesses and densities. Higher power outputs extend the machine's capability to handle thicker and tougher materials. For instance:

1）The physics of power vs. thickness:

The higher the power, the more energy is delivered to the material per unit of time, allowing you to melt and expel thicker sections. For example, a 3 kW fiber laser can cut 10 mm stainless steel with high quality, but to cut 30 mm efficiently you’d need at least 12 kW.

2）The golden rule of “just enough”:

If 90% of your work involves thin sheets below 6 mm, investing in a 20 kW machine is strategic overkill. Excess power won’t fully translate into faster cutting of thin material, but it will inflate your capital outlay and increase electricity consumption. The smarter approach is to analyze your order volume by material and thickness, then select a power rating that covers at least 85% of your core production.

Reference: Fiber Laser Power vs. Max Cutting Thickness (High-Quality Cutting)

These figures are widely accepted as industry benchmarks, but actual performance varies significantly with machine brand, beam quality, assist gases, and other factors. Always validate with actual sample cuts.

2. Cutting Speed and Precision

Cutting speed, often measured in meters per minute (m/min), determines the efficiency of the laser cutting process. The speed varies significantly depending on the material type and thickness, as well as the machine's power output.

High cutting speeds are beneficial for high-volume production environments, where minimizing cycle time is crucial. However, achieving the optimal balance between speed and quality is key, as excessive speed may compromise cut quality.

Cutting speed is a direct measure of productivity, but it must be balanced carefully with cutting quality.

1）Balancing speed and quality:

For a given power and material thickness, there is an optimal speed range. Cut too quickly and the laser may not fully penetrate, causing dross or incomplete cuts. Cut too slowly and excessive heat can cause the kerf to widen, increase the heat-affected zone, and lead to severe distortion—especially in sharp corners and small holes.

2）Beware the “maximum traverse speed” trap:

The "maximum speed" listed in brochures (e.g., 120 m/min) usually refers to non-cutting, idle motion—an almost meaningless vanity spec. What really matters is the consistent, quality-assured cutting speed achievable for your primary materials and thicknesses.

Factors Affecting Speed

Several factors influence the cutting speed of a laser cutting machine:

• Material Type: Different materials absorb laser energy differently, affecting cutting speed. Metals generally require slower speeds compared to non-metals.
• Material Thickness: Thicker materials require more time to cut through, reducing overall speed.
• Laser Power: Higher power lasers can cut through materials faster.
• Beam Quality: A higher quality beam results in more efficient energy transfer and faster cutting.

Accuracy and Tolerance Levels

Precision involves both accuracy—how closely the cut matches the design—and tolerance—the permissible deviation from the desired dimensions.

High-precision laser cutting machines can achieve tolerances as low as ±0.001 inches, making them suitable for applications requiring intricate detailing and exact measurements.

Acceleration (G)

If cutting speed is like your straight-line sprinting pace, acceleration (measured in G, where 1G ≈ 9.8 m/s²) is your agility in curves and direction changes.

1）Why acceleration matters: In real-world production, particularly when processing parts with many holes, corners, and intricate profiles (e.g., control panels, decorative screens), the cutting head must accelerate and decelerate frequently. Higher acceleration means reaching target cutting speed faster and maintaining higher speeds through corners without excessive slowdown—dramatically reducing total cycle time.

2）A little-known truth: For thin-to-medium plate (<6 mm) with complex patterns, acceleration often impacts productivity more than laser power. A 6 kW machine with 3G acceleration can outperform a 12 kW machine with only 1.5G, because the latter spends much of its time ramping up or slowing down instead of cutting.

3）The technology behind it: High acceleration relies on lightweight, rigid gantry structures (such as aerospace-grade cast aluminum or even carbon fiber crossbeams), powerful servo systems, and advanced motion control algorithms—key differentiators between top-tier and mid-range machines.

3. Beam Quality (M²)

Beam quality, denoted by the M² factor, reflects how the laser beam maintains focus over distance. A lower M² value indicates a higher quality beam capable of producing finer, more precise cuts.

This specification is critical for applications requiring high precision and smooth edges, such as in the manufacturing of medical devices and intricate components.

4. Wavelength

The wavelength of a laser affects its interaction with different materials. For instance:

• CO2 lasers: Operate at 10.6 micrometers, making them highly effective for non-metallic materials like wood, glass, and plastics.
• Fiber and Nd:YAG lasers: Operate at around 1.06 micrometers, which are particularly efficient for metal cutting due to their ability to focus on smaller spot sizes, leading to higher precision and faster processing.

5. Cooling Method

Laser cutting machines generate significant heat during operation, necessitating efficient cooling systems to maintain optimal performance and prevent damage. Two primary cooling methods are used:

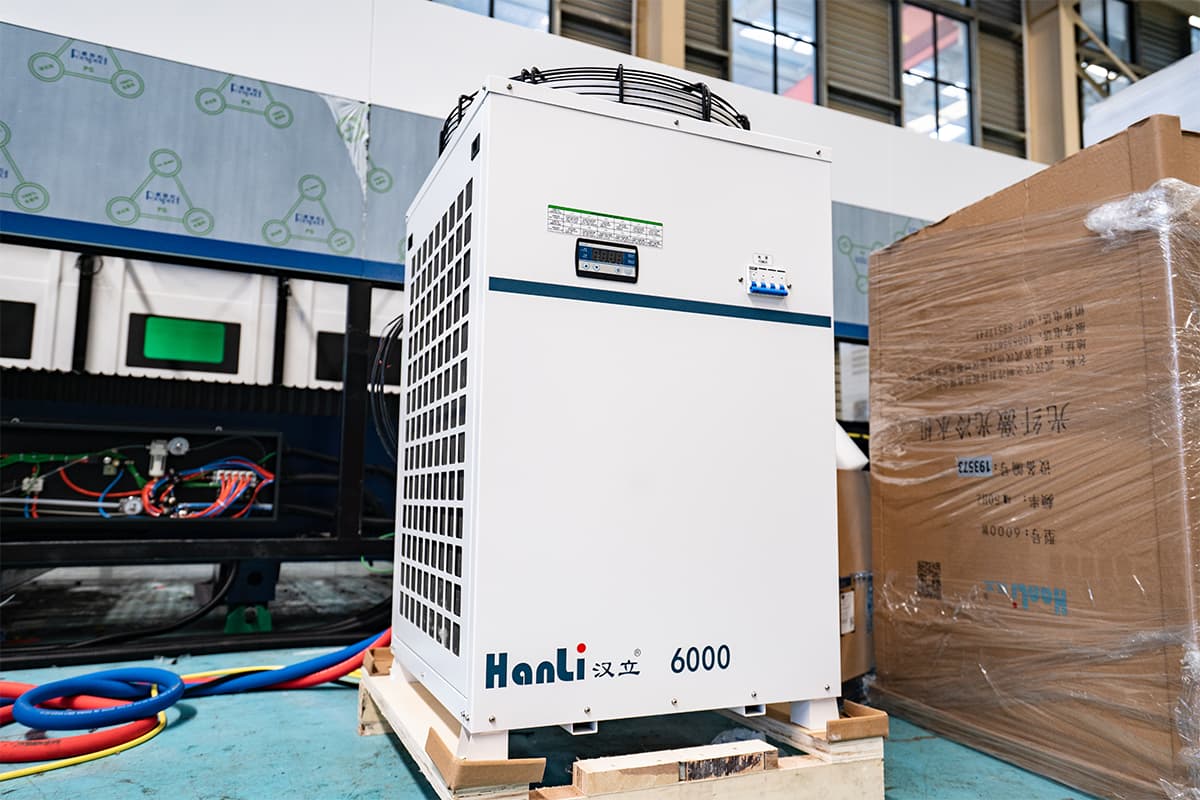

• Water Cooling: Used in high-power laser systems, especially CO2 lasers and powerful fiber lasers, water cooling systems help dissipate the substantial heat generated during extended or high-power cutting. These cooling systems ensure stable operation by maintaining the optimal temperature, preventing overheating and potential damage to the laser.
• Air Cooling: Suitable for lower-powered lasers, typically those below 150W. Air-cooled systems are simpler and more affordable, making them common in desktop or compact models. While effective for smaller machines and tasks, air cooling is inadequate for larger machines or operations involving heavy-duty cutting.

6. Work Area Size

The size of the work area varies between different laser cutting machines and determines the maximum dimensions of the material that can be processed.

Larger work areas are beneficial for applications requiring the cutting of expansive materials, such as in the aerospace and automotive sectors. Conversely, smaller work areas are suited for detailed work on smaller components.

Table Size and Cutting Area

• Small Format Machines: Typically have a table size of 300mm x 500mm, suitable for small parts and detailed work.
• Medium Format Machines: Offer a work area of around 1,000mm x 1,500mm, ideal for medium-sized projects.
• Large Format Machines: Feature table sizes exceeding 2,000mm x 3,000mm, enabling the processing of large sheets and extensive projects.

Impact on Project Size and Scalability

The work area dimensions impact the scalability of your projects. Larger cutting areas allow for the processing of bigger parts or multiple smaller parts simultaneously, increasing production efficiency and reducing setup times.

7. Material Compatibility

The ability to process different materials is a critical consideration. Laser cutting machines should be assessed for their versatility in handling various substrates like metals, plastics, wood, and composites.

Specific machines might be better suited for certain materials—CO2 lasers excel with non-metals, while fiber lasers are preferred for metals.

Types of Materials That Can Be Cut

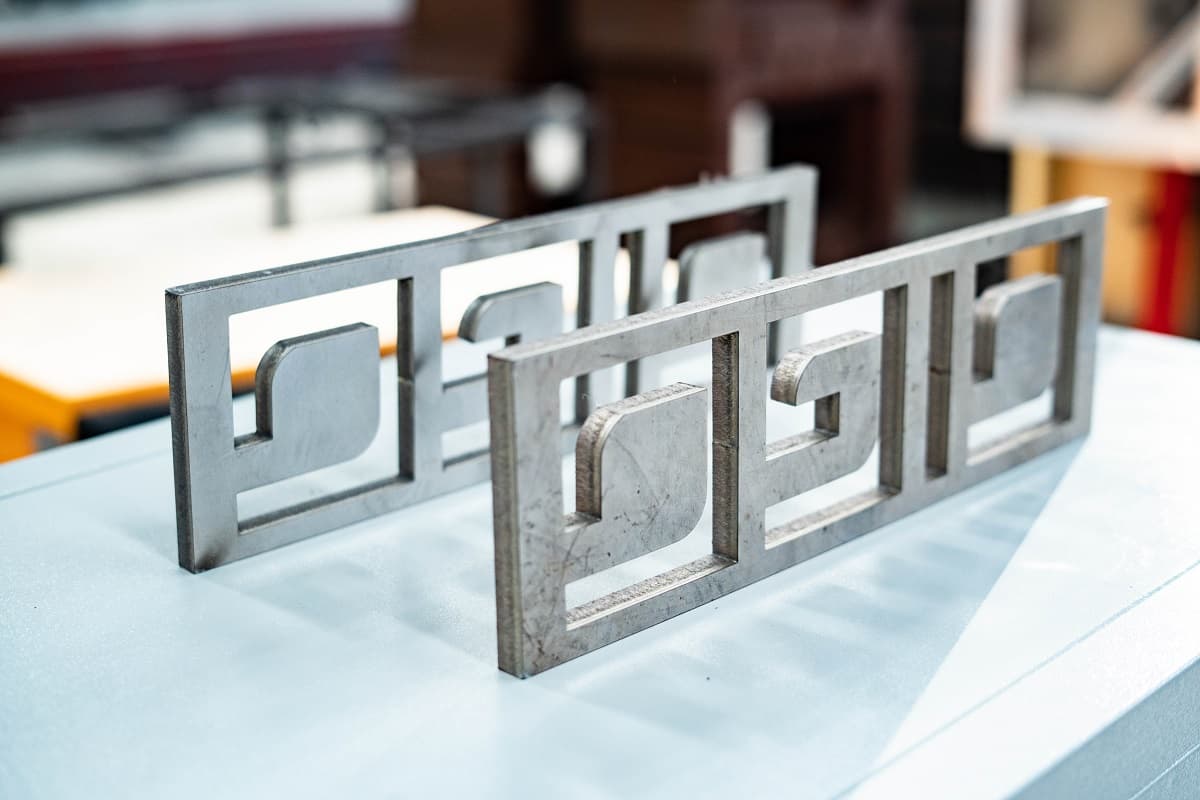

• Metals:
  • Examples: Steel, aluminum, brass, copper.
  • Best Laser Type: Fiber and YAG lasers.
• Non-Metals:
  • Examples: Wood, plastic, glass, textiles.
  • Best Laser Type: CO2 lasers.

Thickness Limits

The maximum thickness a laser cutting machine can handle depends on its power output and the type of laser. For instance:

• CO2 Lasers: Typically cut non-metals up to 25mm and metals up to 5mm.
• Fiber Lasers: Can cut metals up to 30mm with higher power models.
• Nd lasers: Ideal for thinner materials, usually up to 10mm.

8. Maintenance Requirements

Regular maintenance is essential to ensure the longevity and efficiency of laser cutting machines. Key maintenance considerations include:

• Frequency of Maintenance: High-powered machines and those using complex cooling systems typically require more frequent maintenance.
• Cost of Consumables: Items such as lenses, nozzles, and gas supplies need regular replacement. The frequency and cost of these consumables can significantly impact the overall operational cost.

9. Environmental Impact

Modern laser cutting machines are designed with environmental sustainability in mind. Key aspects include:

• Energy Efficiency: Machines with higher efficiency reduce energy consumption and operational costs.
• Emission Control: Systems that effectively manage particulate and gas emissions, thereby ensuring compliance with environmental regulations and enhancing workplace safety.

10. Drive System

• Stepper Motor: Utilized in entry-level or lower-end laser cutting machines, stepper motors provide moderate precision and are sufficient for most small to medium-sized cutting tasks. These motors operate by moving in discrete steps, making them less smooth than servo motors but still reliable for less demanding applications.
• Servo Motor: Found in higher-end, professional machines, servo motors offer significantly greater precision, speed, and smooth movement. Servo motors include a feedback system that allows for real-time monitoring and adjustments, leading to higher accuracy and faster operation. These motors are essential for intricate designs and cutting thick materials quickly and efficiently.

11. Software

Most laser cutting machines come with software tailored for specific operations. Software plays a critical role in translating designs into precise cutting paths and controlling machine behavior. Here are the typical software solutions:

• RDWorks, LaserCut, and LightBurn are commonly used software programs, offering interfaces for adjusting parameters and preparing files for cutting.
• Compatibility with common design file formats such as DXF, AI, SVG, and PLT is essential. These formats allow users to import files from CAD and design software like AutoCAD, Illustrator, CorelDRAW, and others, ensuring flexibility in design preparation.

12. Support Gases

Laser cutting often requires auxiliary gases to assist in the cutting process, especially for metals:

• Oxygen: Commonly used for cutting mild steel. Oxygen helps to oxidize the material during cutting, speeding up the process and improving cut quality, especially for thicker materials.
• Nitrogen: Used primarily for cutting stainless steel and aluminum, nitrogen prevents oxidation by forming an inert atmosphere. This results in a clean, shiny edge without the discoloration or corrosion that oxygen might cause.
• Air: Air can be used for cutting non-metals like wood, acrylic, and plastics. It’s cost-effective and useful for basic cuts in materials that don't require the precision or cleanliness associated with nitrogen or oxygen.

13. Control System

Laser cutting machines are typically equipped with CNC (Computer Numerical Control) systems that allow for fully automated control of the cutting process.

The control system of a laser cutting machine is the interface through which operators manage cutting parameters, design inputs, and operational commands. The CNC system converts the design into machine-readable instructions, precisely controlling the movement of the laser across the workpiece:

• Touchscreen interfaces: Many modern machines come with user-friendly touchscreens for easy operation. These systems allow users to adjust parameters, monitor the cutting process, and even load designs directly onto the machine.
• Advanced Interfaces: High-end machines may feature more sophisticated interfaces, enabling custom settings, remote control, and integration with advanced manufacturing systems.

14. The Foundation of Precision

Precision determines whether your products can meet high-end market standards, and directly affects yield rates and downstream assembly costs.

(1) Positioning Accuracy vs. Repeatability

These terms are often confused, but each measures a different aspect of machine stability.

1）Positioning accuracy: The ability of the machine to reach a specified coordinate precisely—like a sharpshooter hitting the bullseye on the first shot. It shows how well the machine hits the target on command.

2）Repeatability: The ability to return to the exact same point repeatedly—like putting 100 shots through the same bullet hole, even if it’s slightly off-center. It measures how consistently the machine returns to the same spot.

For one-off work, both matter. But for high-volume production, repeatability is paramount. High repeatability (e.g., ±0.02 mm) ensures thousands of parts are dimensionally identical—a prerequisite for stable quality and smooth assembly. Typically, a quality laser cutter’s repeatability will be better than its positioning accuracy.

(2) Why Frame Structure and Gantry Material Matter

The machine bed is the backbone of accuracy—its stability and rigidity are essential for resisting the forces and thermal effects of high-speed operation.

1）Welded bed: Made from steel plates welded together, it’s cost-effective and faster to produce. However, welding creates internal stresses that, unless thoroughly relieved through rigorous annealing and aging, can lead to gradual deformation over time—permanently affecting accuracy.

2）Cast iron bed: Poured from cast iron (often graphite cast iron) and aged both naturally and artificially over a long period, this design eliminates internal stress more thoroughly. It offers exceptional structural stability, and cast iron’s inherent damping properties absorb high-frequency vibrations during cutting. While more expensive, a cast bed is a long-term investment in accuracy and machine longevity.

(3) Industry Precision Standards

Precision requirements differ dramatically between industries. Understanding these benchmarks helps you select the right class of equipment and speak the same "quality language" as your clients.

The stated precision of any machine must be validated through actual test runs, and its ability to maintain accuracy over long periods of operation should also be carefully evaluated.

15. Work Area, Material Compatibility, and Laser Type

Adaptability determines the breadth of your business scope and your resilience in the face of future market shifts.

(1) Work Area (mm*mm)

The work area refers to the maximum sheet size the machine can process. Common sizes include 3000×1500 mm, 4000×2000 mm, and 6000×2500 mm.

1）Match sheet sizes: Select a work area that aligns with the most common raw sheet sizes available in your local market to minimize secondary cutting, thus boosting material utilization right from the start.

2）Larger size and automation: A bigger worktable not only accommodates larger components (such as curtain walls or large machinery housings) but also allows batch placement of more small parts in a single setup. This enables unattended overnight automated production, pushing machine utilization to its limits.

(2) Laser Source Selection: Fiber vs. CO₂

This choice is as critical as deciding between a gas stove or an induction cooktop in a restaurant—it defines your machine’s entire “menu.”

1）Fiber Laser: Short wavelength (approx. 1 µm), excellent beam quality, and extremely high electro-optical conversion efficiency (>30%). Ideal for all metals—especially carbon steel, stainless steel, aluminum, and copper. It excels in cutting thin metal sheets quickly with minimal maintenance costs, making it the undisputed mainstream choice in modern metal processing.

2）CO₂ Laser: Longer wavelength (approx. 10.6 µm), which is readily absorbed by non-metal materials, making it unbeatable for cutting wood, acrylic, leather, fabric, rubber, and other organic materials. Though capable of metal cutting, it is less efficient and has lower thickness capacity compared to fiber lasers.

If your business is exclusively metal processing, a fiber laser is the only logical choice. If your focus is mainly on non-metal sectors such as signage, gifts, or apparel, CO₂ is the better option.

16. The Intelligent Brain

If the machine is its muscular body, then the CNC control system and accompanying software are its brain and nervous system. Their level of sophistication determines whether the machine can realise its full potential.

(1) Control System

Response speed and algorithms: High-end control systems feature faster processing speeds and advanced motion control algorithms, enabling precise execution of high-speed cutting instructions. Their “look-ahead” capability—reading hundreds or thousands of code lines in advance—smoothly manages speed changes, preventing vibration and overshoot during high-speed cutting, and is essential for producing sharp, high-quality angles.

1）Usability and process library: Modern systems should offer a graphical interface, touchscreen operation, and a built-in process database. Operators simply select the material and thickness, and the system automatically applies the recommended cutting parameters (power, speed, gas pressure, etc.), minimizing reliance on operator experience and ensuring consistently high production quality.

2）Integration: Assess whether the system can seamlessly connect with your factory’s MES (Manufacturing Execution System), ERP, as well as automated loading/unloading and storage systems—this is your ticket into Industry 4.0 smart manufacturing.

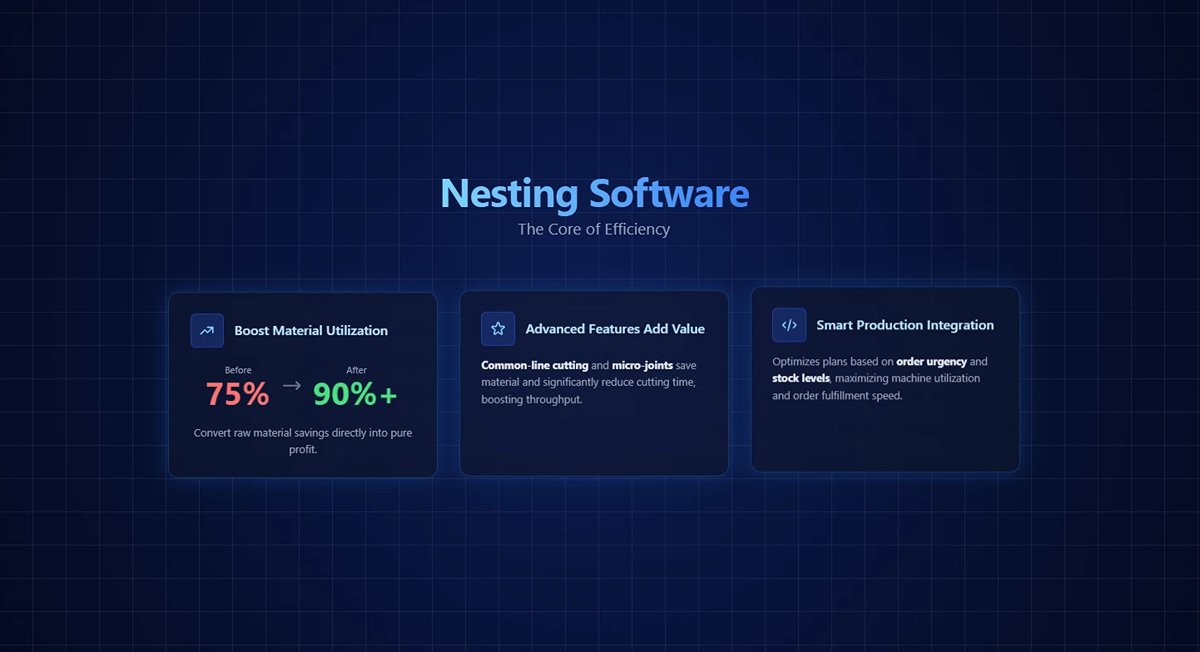

(2) Nesting Software

Nesting software arranges multiple part shapes on a single sheet in the most efficient layout. Its “intelligence” directly affects your material costs.

1）Material utilization is king: A superior nesting algorithm can boost material usage rates from a mediocre 75% to over 90%. That extra 15%—seemingly minor—can translate into significant pure profit over long-term, high-volume production.

2）Advanced features add value: Common-line cutting (sharing an edge cut between two parts) and micro-joints not only save more material but also reduce cutting paths, substantially shortening processing time.

3）Linked with production scheduling: The most advanced nesting software can also factor in order urgency and material stock to automatically generate optimal production plans, maximizing both machine utilization and order turnaround speed.

IV. Evaluating and Choosing a Laser Cutting Machine

Choosing the right laser cutting machine is crucial for ensuring optimal performance, efficiency, and cost-effectiveness in your manufacturing processes. Here, we outline a systematic approach to evaluating and selecting the most suitable laser cutting machine for your specific needs.

Define Your Requirements

The first step in selecting a laser cutting machine is to clearly define your production requirements. This involves considering factors such as:

• Material Types: Identify the primary materials you intend to cut. Different lasers are optimized for different materials; for example, a fiber laser is more suitable for metal cutting, while a CO2 laser excels with non-metallic materials.
• Thickness Range: Determine the range of material thicknesses you will be working with, as this will influence the required power output of the laser.
• Precision and Quality: Assess the level of precision and quality needed for your finished products. High-precision applications, such as those in medical device manufacturing, may require lasers with superior beam quality and fine-detail capabilities.
• Production Volume: Consider your production volume to determine the necessary cutting speed and efficiency. High-volume production may benefit from machines with faster cutting capabilities and automated features.

Assess Technical Specifications

Reference the key specifications outlined in the previous section to evaluate potential laser cutting machines. Key aspects to focus on include:

• Power Output: Matches the power output with the thickness and type of materials you will be processing.
• Cutting Speed: Select a machine with a cutting speed that balances efficiency with quality for your specific applications.
• Beam Quality: Ensure the machine offers the required beam quality for the precision and smoothness of cuts you need.
• Wavelength: Confirm the machine's wavelength suitability for your primary materials.

Evaluate Operational Costs

Operational costs significantly impact the total cost of ownership and should be carefully evaluated. Consider the following aspects:

• Initial Investment: Compare the upfront costs of different machines, including any required accessories and installation fees.
• Maintenance Costs: Factor in the frequency and cost of maintenance, including consumables such as lenses, nozzles, and gas supplies.
• Energy Consumption: Estimate the energy costs associated with running the laser cutting machine. More energy-efficient models may offer long-term savings.
• Downtime: Consider the potential downtime for maintenance and repairs. Machines that are easier to maintain may offer higher reliability and productivity.

Analyze Software and Control Systems

The control system of a laser cutting machine significantly influences usability and integration into your existing workflows. Evaluate the following:

• User Interface: The interface should be intuitive and user-friendly, enabling operators to easily set parameters and monitor operations.
• Software Compatibility: Ensure the machine's software is compatible with your design and production systems. Look for features such as CAD/CAM integration and support for common file formats.
• Automation Capabilities: Advanced features like automated loading and unloading, real-time monitoring, and CNC integration can enhance productivity and reduce manual intervention.

Consider Environmental and Safety Standards

Compliance with environmental and safety standards is critical. Assess the machine's environmental impact, focusing on:

• Energy Efficiency: Opt for machines designed to minimize energy consumption.
• Emission Controls: Ensure the machine has effective systems for managing emissions and particulates, safeguarding operator health and reducing environmental impact.
• Safety Features: Verify that the machine includes necessary safety features such as enclosed cutting areas, emergency stop buttons, and appropriate shielding to protect operators from laser exposure.

Vendor Reputation and Support

Choosing a reliable vendor can make a significant difference in your overall experience. Consider the following:

• Reputation: Research vendor reputation through customer reviews, case studies, and industry references.
• Support Services: Evaluate the level of support offered, including warranty terms, training, and technical assistance. A vendor that offers comprehensive post-sale support can ensure smooth operation and quick resolution of any issues.
• Availability of Spare Parts: Ensure the vendor can supply necessary spare parts promptly, minimizing potential downtime.

Conduct Trials and Demos

Before making a final decision, it is advisable to conduct trials or demos of potential machines. This hands-on evaluation can provide insights into the machine's performance, ease of use, and suitability for your specific applications.

• Sample Processing: Request sample cuts on your materials to assess cut quality and performance.
• Operator Feedback: Involve your operators in the trial process to gather feedback on the machine's usability and features.

Final Decision and Implementation

Based on the comprehensive evaluation, choose the laser cutting machine that best meets your requirements. Plan the implementation process, including site preparation, installation, and operator training, to ensure a smooth transition and optimal utilization of the new equipment.

By following this systematic approach, you can make an informed decision that aligns with your operational needs, maximizing the efficiency and quality of your laser cutting processes.

V. Three-Step Practical Equipment Selection Guide

1. Map Out Your “Production DNA”

The most expensive machine isn’t the one with the highest price tag—it’s the one that least fits your business. That’s why the starting point for selection isn’t browsing spec sheets, but looking inward. With the precision of a forensic investigator, profile your unique “Production DNA.” This will serve as the sole benchmark and guiding principle for all subsequent decisions.

(1) Material Analysis

Apply the classic 80/20 rule to identify the core materials and thickness ranges that account for 80% of your output—or more importantly, 80% of your profits. This immediately rules out over 70% of irrelevant market options.

Build your “Material–Thickness Matrix” by creating a simple table listing the materials and thicknesses you’ve processed most often over the past year, and mark their share of both production volume and profit contribution.

This example table clearly points toward two strategic directions:

1) Laser Type: With a 100% metal workload, a fiber laser is your one and only optimal choice.

2) Core Power Range: The bulk of your work is concentrated on medium-to-thin plate under 6 mm. This suggests a 3kW–6kW laser may well be your “sweet spot.” Investing in a 12kW or higher system requires compelling proof that the added profit from handling the 10% thick-plate workload will offset its significantly higher total cost of ownership (TCO) over the machine’s lifecycle.

(2) Capacity Analysis

Turn the vague notion of “I need it fast” into precise, quantifiable production data.

1) Calculate target machine hours: Based on your current or projected order volume, determine the total net cutting hours required per month to meet delivery deadlines.

2) Define production rhythm: Do your customers demand 24-hour turnaround? Will you run a single 8-hour shift, or aim for 24/7 production via automation?

3) Quantify automation needs: A key tipping point—if your calculations show the machine must maintain over 6 hours of effective cutting per day, downtime from manual loading/unloading (5–10 minutes each time) becomes a massive capacity drain. In such cases, investing in an automatic exchange table stops being a “nice-to-have” and becomes a profit-protecting necessity.

(3) Quality Analysis

Translate the subjective desire for “good quality” into measurable engineering terms.

1) Cut edge requirements: Is downstream processing welding? If so, a bright, oxide-free cut (requiring high-pressure nitrogen) can drastically reduce pre-weld prep, cutting costs. For high-end consumer products, do you have a specific smoothness requirement (Ra value) for cut edges?

2) Dimensional tolerance standards: Which industry do you serve? Are you producing precision instrument parts requiring ±0.05 mm tolerance, or building components needing ±0.5 mm tolerance?

3) Direction of conclusions: A long-term need for high precision (e.g., ±0.02 mm repeatability) steers you toward machines with cast-iron beds, precision-ground racks, and first-tier servo systems—not budget models that cut corners in structural design.

2. Use a “Spec–Needs” Matrix to Shortlist Candidates

Once your “Production DNA” is complete, you’ve got a clear measuring stick. Now it’s time to use it to evaluate market options objectively and dispassionately.

(1) Build a personalized scorecard

Convert your “Production DNA” into a tailored scoring system. Assign different weights to performance parameters based on your analysis from Step 1. This quantifies your unique needs and provides a powerful tool for objective model comparisons.

(2) Comparative Analysis: Turn spec sheets into decision-making tools

Collect detailed specifications and pricing from two or three shortlisted suppliers and populate your scorecard. This process forces you to:

1) Cut through marketing haze: Your attention stays on parameters that matter most to you, not on the flashy “highlight specs” sales reps keep pushing that bring little real value.

2) Identify value differences: You’ll see exactly where your money goes. If Candidate B costs 10% more than C, is that premium paying for critical features like a cast bed and top-tier laser, or for something with little importance in your weightings? Decisions become crystal clear.

3. Validate Your Final Choice Through Real-World Testing

Spec sheets and scorecards can narrow it down to a champion and a runner-up, but the contract should rest on hard, physical proof. “Trust, but verify” remains the golden rule.

(1) Push the machine to its performance limits

Skip the vendor’s demo of a simple company logo. Instead, design a challenging “all-in-one stress test” that pushes the equipment to its boundaries. Use a palm-sized sample plate made from the most common and toughest material–thickness combination in your operation, and incorporate the following elements:

1) Micro-hole array: Cut a row of holes with diameters decreasing from 3 mm down to 0.5 mm in one corner. This is a ruthless test of beam quality, power stability, and heat-affected zone control. Weak machines will show severe burring, deformation, or outright failure when tackling the smallest holes.

2) Extreme Sharp Angles: Incorporate several sharp internal and external corners with angles less than 30°. This will reveal the machine’s true acceleration capability during rapid directional changes, as well as the predictive intelligence of its CNC control algorithms. Underperforming systems will often round these corners excessively or cause overheating and burn marks due to inadequate deceleration.

3) Long Straight Edges and S-Curves: Include one extended straight cut to evaluate cut-face quality—specifically, verticality and surface smoothness—at the machine’s maximum stable speed. Follow this with a smooth S-shaped curve to assess contour-following accuracy at high feed rates.

4) Nested "Hui" Pattern: Cut a nested square spiral-like pattern (the Chinese “回” character) with both inner and outer frames. Use calipers to measure the parallelism and dimensional consistency between them. This serves as the ultimate test of the machine’s overall dynamic accuracy and repeatability in positioning.

5) Surface Micro-Engraving: In an unused section of the sample, use low power at high speeds to engrave a line of very small text. This will test the laser’s responsiveness to fine power adjustments and the CNC system’s ability to process micro-movement commands with precision.

Whether you measure it yourself or commission a third party, record the deviations between the actual dimensions of the sample and the design specifications, along with the total time taken to complete it. The same “killer” test piece can show efficiency differences of over 30% between machines—a tangible predictor of your future profit margins.

(2) On-Site Inspection Checklist

When standing next to a roaring machine, don’t just check the test piece—observe, like a detective, the subtle details that never make it into brochures:

1) Listen: During high-speed traverses and sudden directional stops, is the sound smooth and consistent, or does it produce harsh noise and noticeable mechanical vibration? The latter often signals poor mechanical assembly tolerances or suboptimal servo tuning.

2) Feel: After the machine has been running for a while (ensuring safety precautions), place your hand on the machine bed. A well-engineered, sturdily built frame should suppress vibrations effectively, feeling solid and stable—not jittery or shaky.

3) Watch the Software: Ask the operator to demonstrate importing a DXF file, nesting parts, setting parameters, and starting a cut. Is the user interface graphical, intuitive, and fluid, or does it require a long string of complex commands? Software usability directly impacts your future training costs and production efficiency.

4) Ask “Simple” Questions: Deliberately pose basic queries, such as “How often do you change the protective lens, and is it easy to replace?” or “If I miscut a part, what’s the fastest way to pause and reset?” The patience, professionalism, and clarity of the engineer’s answers reveal a great deal about the technical competence and aftersales quality of the team behind the machine.

5) Check Safety Features: Personally trigger the safety light curtain to see if the machine responds instantly. Verify that the interlock switches on protective doors work reliably. These safeguards protect your employees’ lives and are non-negotiable.

By following this three-step methodology—from strategic overview to micro-level verification—you can cut through the fog of marketing specs, resist price-driven compromises, and ultimately select a machine that perfectly matches your “production DNA,” delivering profitable performance for years to come.
For continued optimization and smarter production control, consult the Guide to Laser Cutting Software to integrate advanced CNC and nesting features into your workflow.

Ⅵ. FAQ

1. What is the difference between CO2 and fiber laser cutting machines?

• CO2 Lasers: Utilize a gas mixture (primarily carbon dioxide) as the lasing medium. They operate at a wavelength of 10.6 micrometers, making them highly effective for cutting non-metallic materials such as wood, plastics, and textiles. Despite being versatile enough for some metal cutting, they often require additional assists like oxygen to cut thicker metals effectively.
• Fiber Lasers: Employ a solid-state lasing medium, where the laser is transmitted through an optical fiber. Operating at a wavelength of around 1.06 micrometers, fiber lasers excel in metal cutting, including reflective materials like copper and aluminum. They offer higher efficiency, faster speeds, and lower maintenance requirements compared to CO2 lasers.

2. How do I determine the right power output for my needs?

Determining the right power output involves assessing your specific cutting requirements:

• Material Thickness: Higher power outputs (such as those above 2kW) are necessary for cutting thicker materials. For instance, industrial applications involving heavy steel or aluminum require high-powered lasers to ensure clean cuts.
• Material Type: Different materials require varying power levels. Metals generally need more power, while non-metals like wood and plastics can be efficiently cut with lower-powered lasers.
• Precision Needs: If your application demands high precision (like fine engravings or detailed metal cuts), opting for a machine with suitable power and excellent beam quality is crucial.
• Production Volume: For high-volume production, a balance between power and speed is vital to maintain efficiency and throughput.

3. How often does a laser cutting machine need maintenance?

Maintenance frequency largely depends on the type of laser cutting machine and its usage:

• Routine Checks: Conduct daily inspections of lenses, nozzles, and gas pressures to catch early signs of wear or misalignment.
• Scheduled Maintenance: Typically, a detailed maintenance check should be performed every few hundred operational hours, as per the manufacturer’s guidelines. This includes cleaning optics, checking cooling systems, and calibrating the laser beam.
• Consumable Replacement: Regularly replace consumables like lenses, mirrors, nozzles, and assist gases to maintain optimal cutting performance.

4. What should I look for in laser cutting machine control software?

When selecting control software, consider the following features:

• User Friendliness: An intuitive interface that simplifies operation and reduces training time.
• Programming Flexibility: Support for various programming languages and compatibility with existing CAD/CAM software.
• Real-Time Feedback: Provides real-time monitoring and diagnostic capabilities to optimize cutting parameters and detect issues promptly.
• Automation Integration: Compatibility with automated systems and robotics to enhance production efficiency.
• Security Features: Robust security measures to protect against unauthorized access and ensure data integrity.
